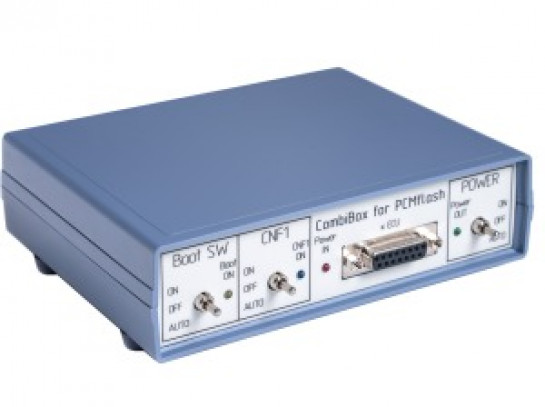

CombiBox is designed to connect an ECU to PCMflash and a J2534 device on the bench and to switch power and GPT1, GPT2 signals, and to form BOOT, CNF1 signals. When used with Scanmatik 2 PRO CombiBox for PCMflash allows to form GPT1, GPT2 signals necessary to work with Module 53 and Module 71, and future modules.
Power
CombiBox requires constant 12V supply voltage. The mating part of the connector is included in the delivery package. It is utterly important to respect polarities when arranging soldered connections of the power cable. Incorrect power supply is EXTREMELY DANGEROUS and may cause the CombiBox or the control unit connected to it to fail. It is recommended to use regulated laboratory power supplies with voltage adjustment range up to 30V and with a maximum current of not less than 3A to safely operate CombiBox and program ECUs.
| Brand | |
| Model Number | |
| Availability | |
| Product SKU | CombiBox for PCMflash |
| Minimum order quantity | 1 |
| Maximum order quantity | 5 |
| Listed date | 25th Apr, 2022 |
