Product Description
CONTENENTS OF OBD STAR PACKAGE :

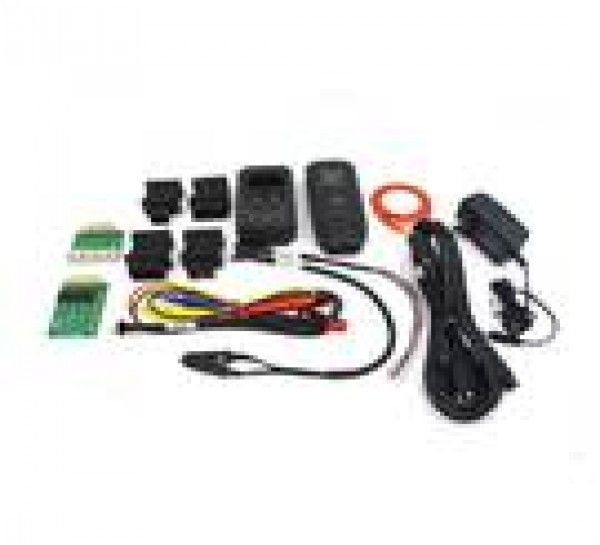

Immobilizer + special function (EEPROM + key renewal) Adapter (P001 programmer + C001 circuit board + C002 circuit board + W001 cable + W002 data cable + W003 data cable + Toyota smart key emulator) + Others (Ignition Coil + Tester from afar).
It does not support the following car models: Daihatsu, Proton, Mahindra, Maruti, Tata, Holden, Lada, Perodua, Iran (please contact your local dealers for permission).
Type : A

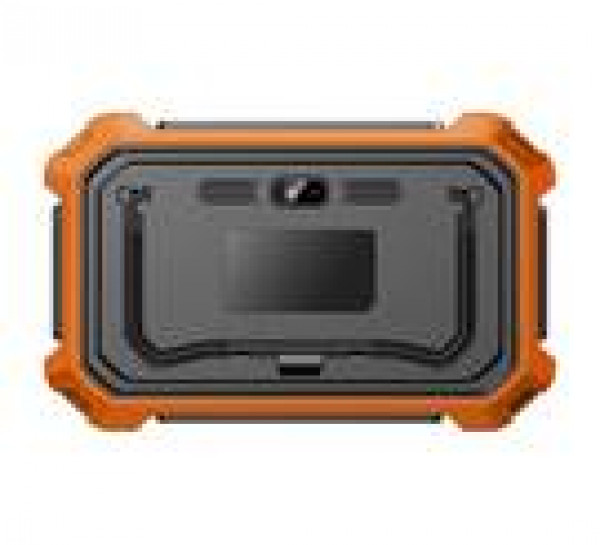

OBD STAR DP FEATURES:
Built-in VCI box, more stable connection
8 inch touch screen, more intuitive
It can be charged directly via the OBD interface
Practical and high quality gift box
Industrial design with a silicone case
Back support design: it can support the steering wheel or stand on the table, which is easy to operate
With 4 Toyota simulation keys (5th coming soon)
3 in 1, P001 Programmer: Combined with EEPROM Adapter + RFID Adapter + Key Regeneration Adapter
Add SOP 8PIN EEPROM reading segment
Add wire harness for ECU reading by OBD (for ECU cloning and switch activation.
Program advantages :
EEPROM
Key renewal
key programming
remote programming
Special functions:
TPS / ABS / EPB / DPF / TPMS / SRS reset / Fuel injector / Gear learning / Battery matching / ECU programming / Throttle matching /
Oil / Service Reset / Steering Angle Reset / Remote Manual Setup / Electronic Steering Reset / CVT Learn / Value Reset
Clone ECU
1. ECU Clone, means ECU duplication.
The device copies all the data from the ECU of the original car and then writes all the copied data into the ECU with the same device to achieve the same ECU function with the original car.
2. Directly clone when replacing a new or used ecu!
No online matching in 4S store or remove ecu read and write ecu wire! Write directly without disassembling the OBD!
3. Three features of ecu cloning:
Free 4S online: break the monopoly of 4S, which is beneficial to the auto maintenance industry
Simplified operating procedures: Achieve foolproof operation
No-risk disassembly: read and write data without disassembling the ECU
Switch activation function
(Today, many instruments or vehicle audio activate a secondary power supply to go into the running state through the relevant module CAN connection on the vehicle, but sometimes an instrument or audio is disconnected from the vehicle's CANBUS network, causing startup failure when The need for it to be repaired by an automotive technician.This function can simulate the CAN communication to activate the secondary power supply, so that the instrument or audio will enter the ON state.In this way, it can not only test and verify the instrument or audio, but also save expensive cost for the automobile technician to purchase A large number of starter pads for various vehicles and wiring harnesses!).
