Product Description

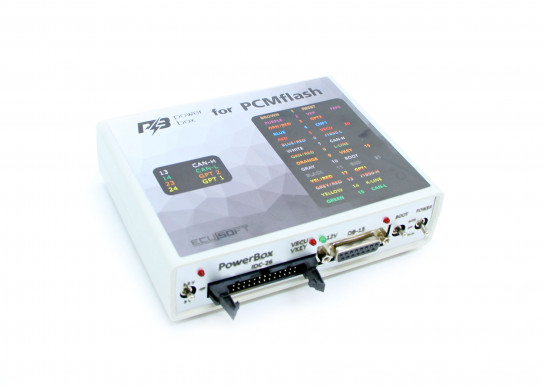

The tool is designed for connecting an ECU to a J2534 device and provides manual or automatic power control of the ECU and shaping of the following signals: RESET, BOOT, CNF1, GPT1, GPT2, WATCDOG.

It is compatible in the automatic mode with the programming tools which use:

BOOT-OEM12, 12 pin OBD-II;
L-LINE, 15 pin OBD-II.

The tool has built-in current limiting resistors on the following signal lines:

RESET — 510 Ω; • BOOT — 510 Ω;
CNF1 — 220 Ω.
The tool is fitted with multipurpose connectors which allow to establish the connections flexibly:
- USB, designed for connecting to the computer. It is to be connected when the built-in USB — UART converter is enabled; for PowerBox software update; while reprogramming Renesas CPUs;
- DC, designed for powering the built-in circuit as well as the connected ECU. It is recommended to use only quality units with 12V output voltage. While reading the password, when it is impossible in the vehicle, one must note that high-voltage converters in ECUs consume rather high current at the start which can trigger protection mechanism or even result in the power unit damage;
- J2534 (OBD-II-F), designed for connecting the same name interface to OBD-II;
- DB-15, designed for connecting to the main ECU connector. It is recommended to use 14P600KT02, 14P600KT03 cables or analogous ones;
- IDC-26, designed for connecting directly to the ECU board or via the adapter to the special head. It is recommended to use 14P600KT06 cable or an analogous one for Tricore GPT. It is recommended to use Flash Development Toolkit software for flashing Renesas CPUs.
Controls:
The tool has 3 switches for operating in different modes:
- «POWER», power control. The tool has three modes of power supply to the ECU: OFF allows to remove all power and control signals from IDC-26 and DB-15 connectors; MANUAL supplies power to VECU and VKEY terminals and to the control outputs depending on the chosen tactics; AUTO, automatic control, in this mode power is controlled by the loading program with L-Line signal (15 pin OBD-II);
- «BOOT», simultaneous control of BOOT, RESET and CNF1 signals (3.3V): OFF, allows to remove all control signals from DB-15 connector; MANUAL pulls RESET and BOOT to the signal minus, and CNF1 to +3.3V; AUTO, automatic control, in this mode BOOT, RESET and CNF1 signals are simultaneously controlled by the loading program (12 pin OBD-II, OEM12);
- «GPT», for Renesas and Tricore with GPT CPUs. It is necessary to use 5V while working with SH705x CPUs, in other cases 3.3V is to be used.
Lights:
- LED near the 5V/3.3V switch indicates 5V or 3.3V voltage supply;
- VECU, VKEY LED indicates VECU and VKEY voltage supply;
- 12V LED indicates power voltage;
- BOOT LED indicates voltage on CNF1 output (the LED works both for input and output).
Software to work with Renesas CPUs
You can use Flash Development Toolkit software to work with Renesas CPUs. The software is free of charge and is available for download on the developer’s website after signing up. At the moment (06.03.17) V.4.09 Release 03 version can be downloaded without signing up following this link. The software allows to flash Renesas CPUs of various series (sh705x and sh725xx) in the BSL mode. The software supports even those CPUs that are not supported by expensive tools. The software can be used to recover ECUs with these CPUs if you have full flash file.

Product Specifications

Brand
Model Number
Availability
Product SKU	PowerBox for PCMflash
Minimum order quantity	1
Maximum order quantity	1
Listed date	25th Apr, 2022
