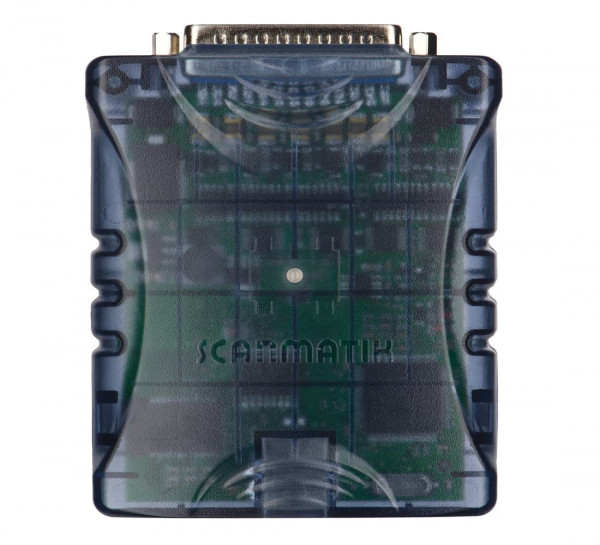

Scanmatik 2 PRO is a professional multibrand scanner designed for diagnostics of electronic control systems of American, European, Japanese and Russian vehicles. It can be used as a J2534 device with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
New features of Scanmatik 2 PRO:
Galvanic isolation of the USB port (with power);
Redesigned protection of K-lines and CAN buses on a new element base;
Increased speed of work via Bluetooth by about 20%;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
The widest support of J2534-1/2 standards:
Supply of programming voltage (5-24V) to the OBD connector pins: 6, 8, 11, 12, 13, 14;

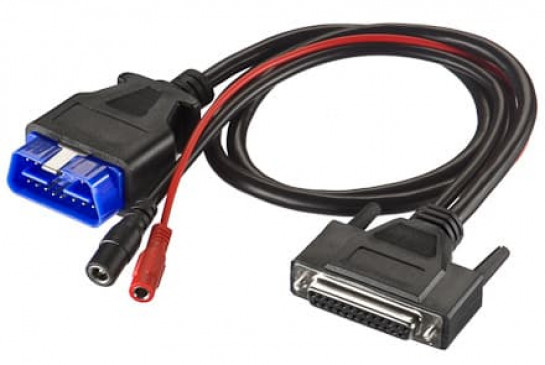

AUX programming voltage output (via an additional cable).
For full support of peripheral units on GM (GDS2) and VAZ/Renault cars:
An additional CAN bus on pins 12-13 running in 12H-13L or 12L-13H configuration.
Description
The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and Bluetooth interfaces can be used (built into the Scanmatik 2 PRO adapter). The kit includes the full current version of the program (all currently available software modules): VAZ, GAZ, UAZ, Oka, ZAZ, Daewoo, Chevrolet, Ravon, Chery, BYD, Geely, Great Wall, Lifan, Mitsubishi, Kia, Hyundai, Izh, KAMAZ, MAZ, PAZ, OBD2. It works with a large number of diagnostic programs and flashers made for standard interfaces SAE J2534 and RP1210.
SM2-PRO Adapter Specifications

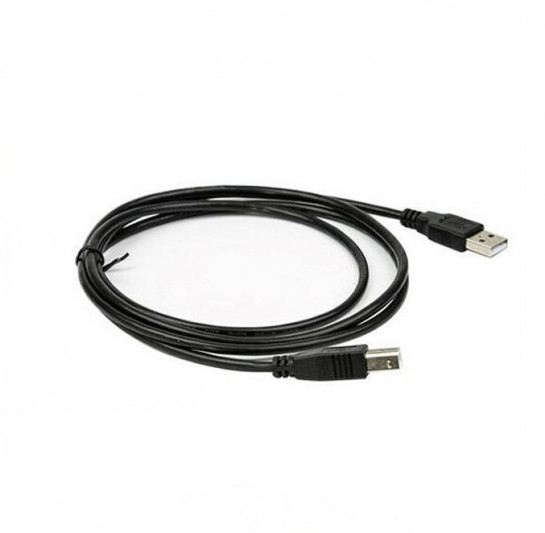

Interfaces for communication with PC (Tablet, Smartphone) - USB or Bluetooth;
Power supply voltage: 5... 36V from the vehicle network or USB (galvanic isolation with power supply);
Current consumption, not more than 350mA;
Pulsed power supplies of the company’s own design (no heating, wide input voltage range from 5 to 55V);
Load-Dump power surge protection (when the generator is switched off on a running engine).
Supported data buses:
13 x ISO-9141/ISO-14230 (K-LINE);
1 x J1850VPW;
1 x J1850PWM;
4 x CAN;
1 x Single Wire CAN.
Built-in multiplexer for switching diagnostic lines;
The widest support of J2534-1/2 standards;
Programming voltage supply (5-24V) to the OBD2 connector pins: 6, 8, 11, 12, 13, 14;
AUX programming voltage output (via an additional cable);
Bluetooth range, not less than: 10m (Class 2);
Adapter dimensions (L x W x H), not more than: 970×750×220mm;
Weight of the device in the basic configuration, not more than: 1 kg.
| Brand | |
| Model Number | |
| Availability | |
| Product SKU | SCANMATIK (ORIG) |
| Minimum order quantity | 1 |
| Maximum order quantity | 1 |
| Listed date | 3rd Dec, 2022 |
